Australian standards · shade structuresWhat the codes cover, in plain English.

There's no single Australian Standard that tells you how to build a shade sail. There's a set of them, and a safe structure answers all of them at once, for one particular site.

On a backyard sail, answering them is our job. Once shade goes over a school yard, a car park or a civic space, somebody has to sign for it, and these standards are what they sign against.

Why standards start to matter

A patio sail has a short span. A 230 square metre canopy on T-posts does not, and every metre of it drives load through the posts and into the footings.

What that load comes to, and what steel and concrete it takes to hold it, is what the standards settle. They fix the wind speed a design is checked against, and the fabric strength that has to survive years of light. The AS/NZS 1170 series is the framework the National Construction Code calls up for those actions.

AS 4174: what the fabric is graded on

AS 4174:2018, Knitted and woven shade fabrics, is the standard behind the numbers on a shade cloth swing tag. It covers how these fabrics are classified, tested and labelled, for horticulture on one hand and human protection on the other.

• Ultraviolet effectiveness: how much ultraviolet and visible radiation passes through the cloth, reported as a UVE percentage. A figure like blocks up to 99% of UV comes from here, measured on the fabric in a laboratory.
• Strength, before and after light: a minimum when the cloth is new, and a minimum again after a set period of light exposure. That second figure is the one to read, because every cloth is strong on the roll.
• Cover factor: the density measure used to band the horticultural fabrics, the ones sold to shade plants.

The standard also says plainly that a fabric's UVE rating doesn't tell you how much solar radiation a structure made from it will stop. What reaches the person underneath also depends on the height of the canopy, its size, and how much open sky is visible from where they stand. So we design the shape and the height as carefully as the colour, and our guide to shade cloth versus waterproof PVC covers the fabric choice.

AS/NZS 1170.2: wind, and what a wind region means for a Sydney site

AS/NZS 1170.2:2021, Structural design actions, Part 2: Wind actions, is the current edition. It sets out how an engineer turns a location into a design wind speed, and that speed into the forces the frame has to carry.

The starting point is the wind region, because the north of the country gets cyclones and Sydney does not. Sydney sits in Region A2. Then come the multipliers, which is why one address can want heavier steel than another a few streets away.

Those multipliers are terrain (open paddock, suburban street or exposed rooftop), shielding from whatever stands upwind, and topography, meaning whether the land rises into a ridge that speeds the wind up. Height matters too, since the wind runs faster the further it is off the ground.

Then there's the sail itself. The more area it presents to the wind, the harder every post has to work.

Ask any supplier, us included, which wind region and which terrain category the design was worked to, and whose name is on the drawing.

The rest of the set: the steel, the footings and the water

Four more standards come into the design once the wind loads are known.

Fire tests, and the data sheet behind them

A public-building specification will ask how the fabric behaves near a flame. AS 1530.2 is the flammability test built for thin, flexible materials such as woven shade mesh, and it returns a Flammability Index from 0 to 100, on a scale where lower is better.

AS/NZS 1530.3 is the early fire hazard test, and it reports four indices at once: ignitability, spread of flame, heat evolved and smoke developed. A result under either test belongs to a particular fabric and a particular batch.

What ‘engineered to code’ should mean when a supplier says it

• A site-specific design: the wind multipliers above worked out for your address.
• Drawings before fabrication: the structure set out and dimensioned, with post positions and member sizes on the page.

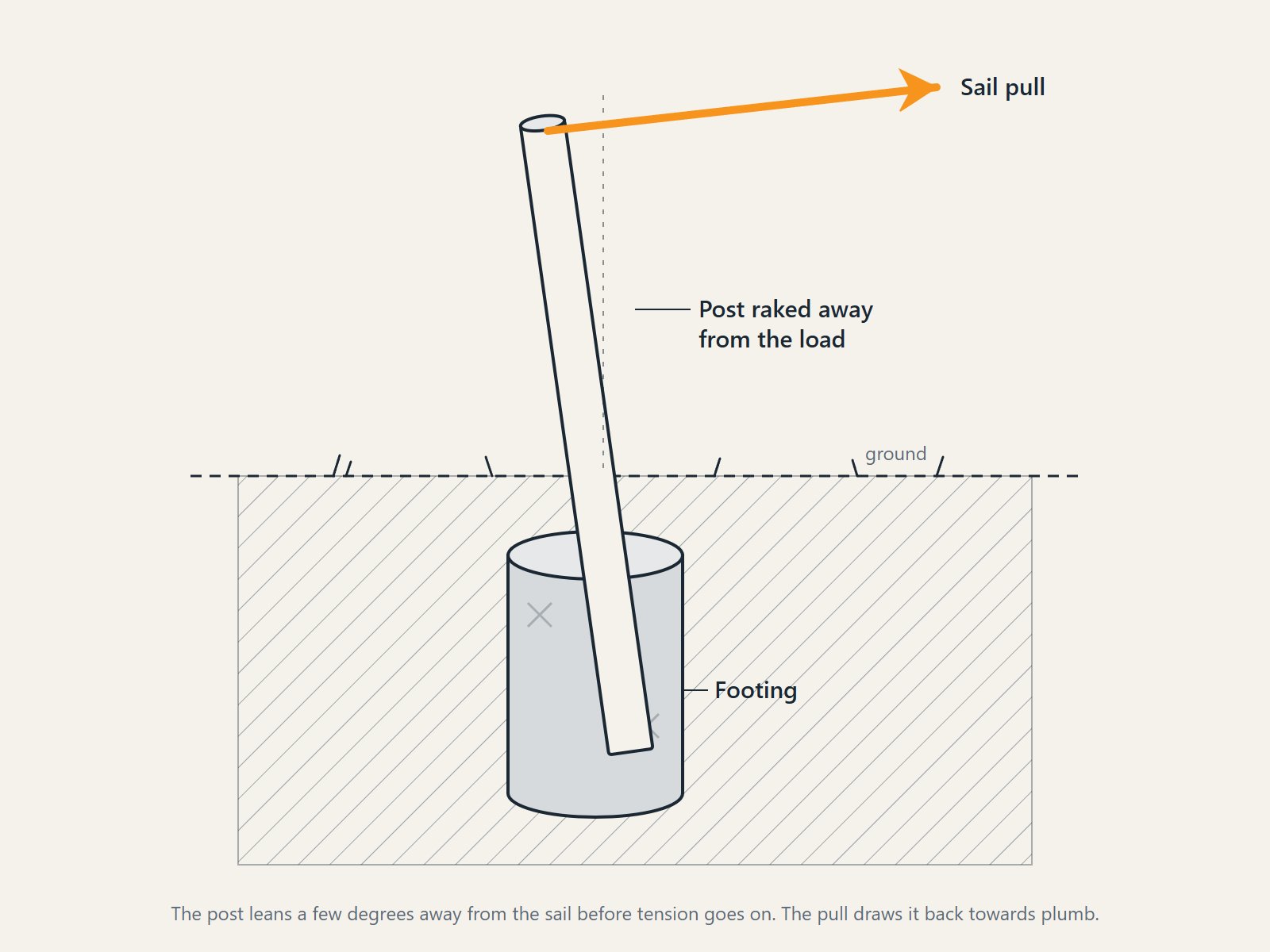

• Footings designed for the ground: rock, fill, reactive clay and a suspended slab each want something different.
• The fabric named: the membrane identified by name, with its own test data behind it.
• Certification on request: from the engineer who did the work, produced if you ask.

Who this matters most to

A covered outdoor learning area sits over children and has to survive inspection, and its drawings and fabric specification double as the technical half of a funding application. That work sits on our COLA shade structures and educational pages, car park shade structures are the same job with vehicles underneath, and the rest lives under commercial work. Keep the drawings and the fabric sheet, because the steel will still be there when the sail is replaced.
