Council approval · NSW shade sailsCheck the site, then the sail.
Almost never for an ordinary home sail. The size, the height, the position and the land are what decide it.
In our experience of ordinary home enquiries, almost never. What decides it is the size of the sail, its height, where it sits on the block and what the land itself carries, and the NSW exempt-development rules put numbers on all four. Meet every one of them and there is nothing to lodge. Miss one and the job takes a different pathway, and that pathway is paperwork.
Choose your starting point
- A small fabric sail at homeCheck the conditions below.
Dimensions, road frontage, land restrictions and existing shade structures all matter.
- A school, childcare, commercial or shared siteConfirm the pathway with the landowner and relevant planning or asset authority.
Use-specific rules and other approvals may apply.
- A condition fails or you cannot confirm itHave the design or pathway checked before ordering.
The sail goes down a different pathway, usually a redesign or an application.
The home-sail measurements
Under Codes SEPP clauses 2.71 and 2.72, the residential checks include the limits below. They work together, alongside the general exempt-development requirements. Provisions checked September 2026.
All four must fit
Area: up to 20 m²
The residential limit. Existing and proposed shade structures together must also stay within 15% of all buildings’ ground-floor area on the lot.
Height: up to 3 m
Measured from existing ground level. Check the highest part, including supports.
Boundary clearance
At least 900 mm in most zones; 5 m in RU1, RU2, RU3, RU4, RU6 and R5.
Behind the building line
The structure must be behind the building line of every road frontage. A front-driveway sail needs particular care.
Example: with 100 m² of total building ground-floor area, the combined shade-structure limit is 15 m². A proposed 18 m² sail would fail that test even though it is under the individual 20 m² limit.
The conditions a tape measure will not settle
The NSW Planning Portal also requires structural adequacy, installation to the manufacturer’s specifications and applicable Building Code compliance. Foreshore land is excluded from this shade exemption; the general rules restrict other land, including State Heritage Register land and interim heritage orders.
- Connections: fascia connections must follow a professional engineer’s specifications.
- Water: keep drainage fixtures and existing flow paths working.
- Materials: metal components must be low-reflective and factory pre-coloured.
- Special sites: heritage locations have rear-yard conditions; bushfire-prone land close to a dwelling and centre-based childcare have non-combustible material requirements.
These are screening checks, not permission for a particular address. Read the full development standards with the general land and building requirements, and ask council about tree work and any site restriction you are unsure of.

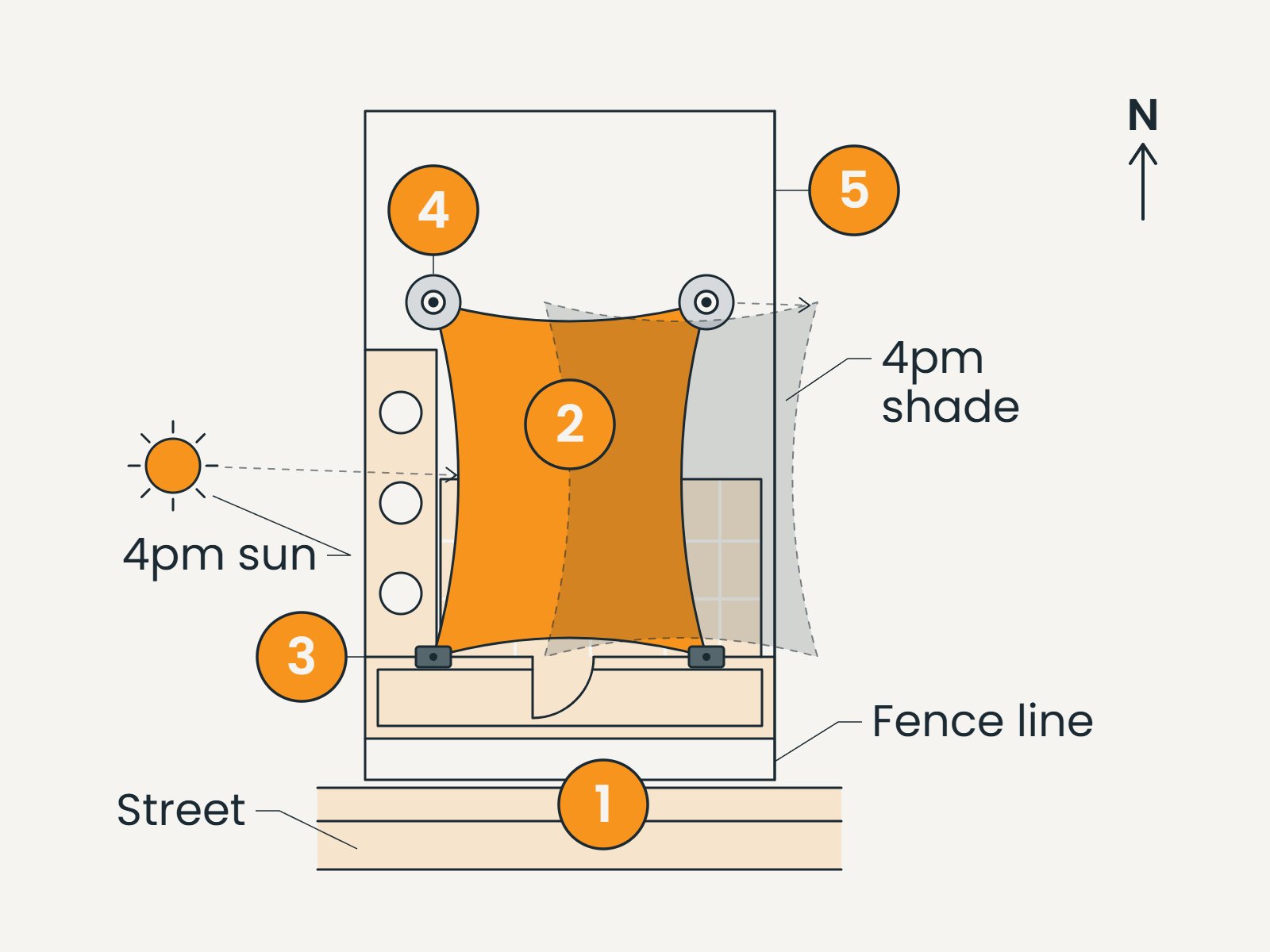

What the plan needs to show
- 1. Address and road frontage. Zone, building line and land restrictions.
- 2. Sail outline. Area and heights, plus existing shade structures.
- 3. House connections. Suitable structural attachments, confirmed by the installer or engineer.
- 4. Posts and footings. Proposed positions, services and ground conditions.
- 5. Boundaries. Required clearances and the effect on the neighbouring space.
If your proposal falls outside the exemption
A sail 2.8 m high but 600 mm from a side boundary fails the usual setback. Moving the support may settle that; a larger proposal may need a different pathway. Ask council or a qualified planning professional whether redesign, complying development or a development application suits the site, and keep the answer and its basis with your drawings. We hold builder’s licence 294924C, and our sails are engineered to the NSW wind codes with certification available on request, which is usually the document a council or a strata committee asks to see.
Schools, childcare and commercial sites
Clause 2.72 sets different area limits: 40 m² for centre-based childcare in residential zones, 60 m² in other zones, and 30 m² for other uses. Other conditions still apply. NSW public schools should start with the Department’s project-proposal procedure; a P&C funding decision is separate from permission to carry out works.
Do I need to tell my neighbours about a shade sail?+
On an ordinary home sail there is no application for anyone to be notified about, so there is nothing formal to do. We would still knock if it were ours. A sail changes what people see over the fence and where the late sun falls, and a word across the driveway beats a polite note afterwards. If overlooking or overshadowing is in play, design around it before it goes up.
What about strata or community title?+
Anything fixed to common property or to the outside of a building generally goes to your owners corporation for written consent, so get it into the minutes before anything is cut. Being exempt from council does not get you out of the owners corporation, and a landlord’s consent works the same way.
I already put a sail up. Am I in trouble?+
If it is an ordinary home sail, it was very likely exempt the day it went up and there was nothing to lodge. If yours sits outside that, the fix is paperwork: an engineering assessment, and where it is warranted, an application after the fact.
